Isolator Disconnect Fuse Switch

  • APDM Pole Mounted Fuse Switch Disconnector For Line Protection
  • APDM Pole Mounted Fuse Switch Disconnector For Line Protection
APDM Pole Mounted Fuse Switch Disconnector For Line ProtectionAPDM Pole Mounted Fuse Switch Disconnector For Line Protection

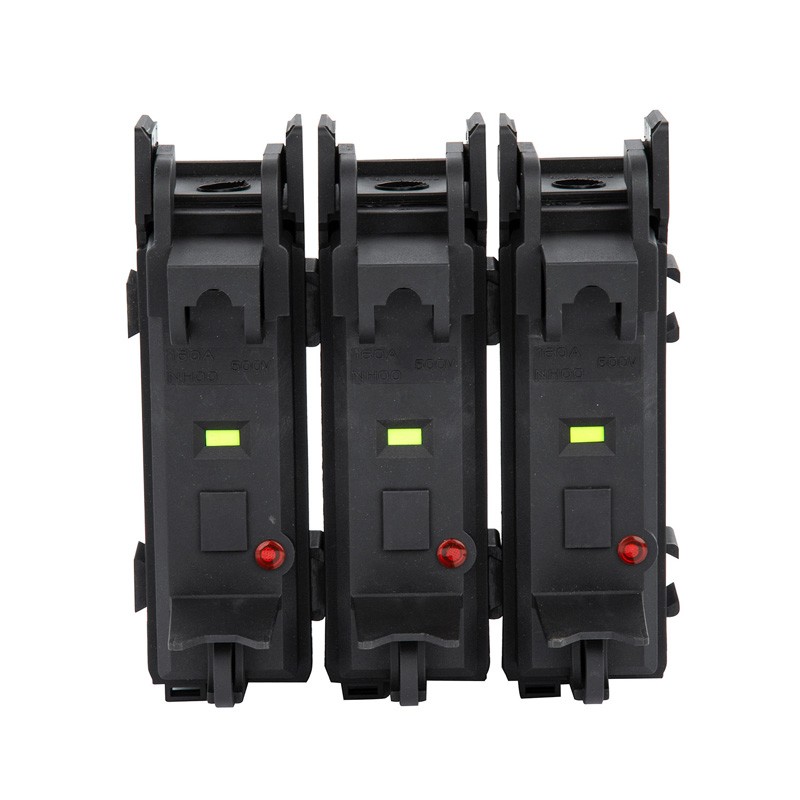

APDM Pole Mounted Fuse Switch Disconnector For Line Protection

Product Description:

The APDM630 fuse switch it is used either as an operation or protection device for LV lines. It is designed to be used with NH 1-2 or 3 size fuses offering a maximum of 630 Amps of line protection without blades.In case blades are used, the maximum switching load would be 800 Ampslt is manufactured in reinforced fiberglass polyamide and fulfills all the necessary requirements for outdoor installation and operation.In the APDM 160C model the connection is made with connectors suitable for aluminum and copper conductors with a section range between 16 and 95 mm2 (5-4/0 AWG). The closure of the cap allows the switch to be closed with or without a fuse, preventing the risk of leaving tension parts exposed. It may also be provided with a light emission diode (LED).

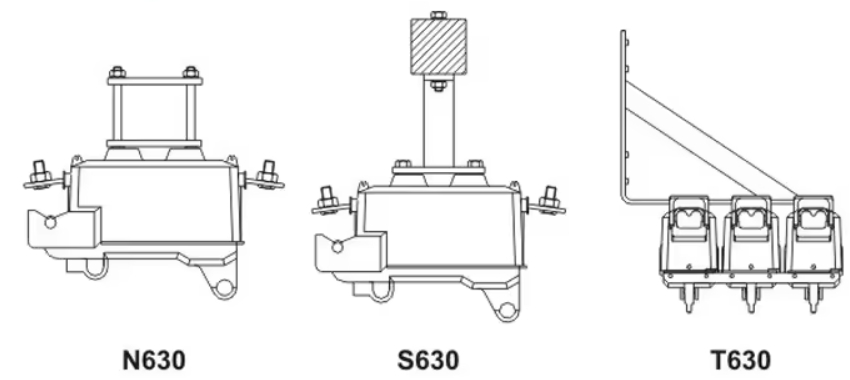

APDM DRAWING.jpg
