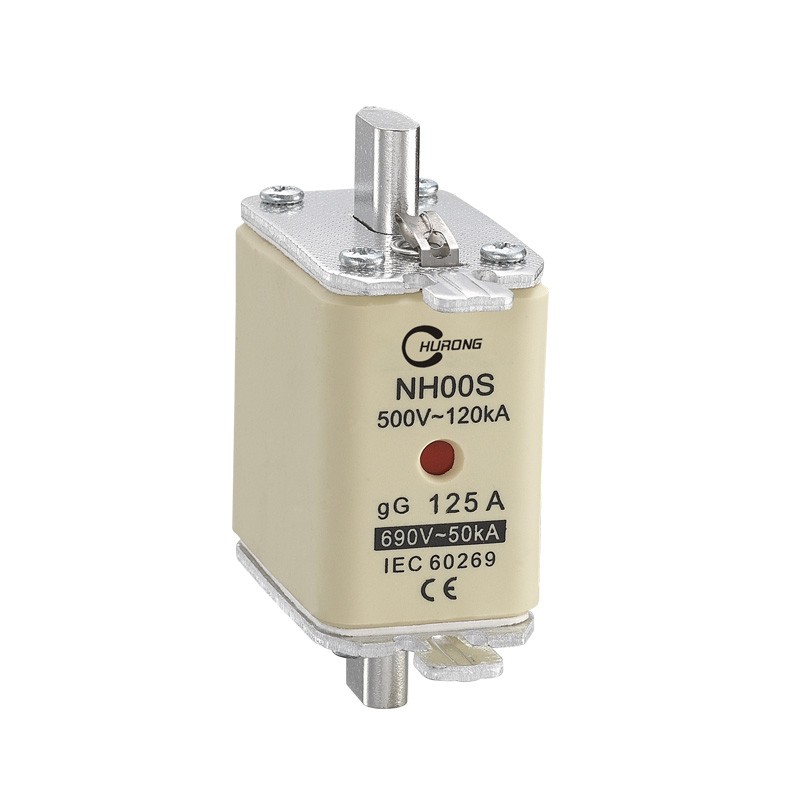

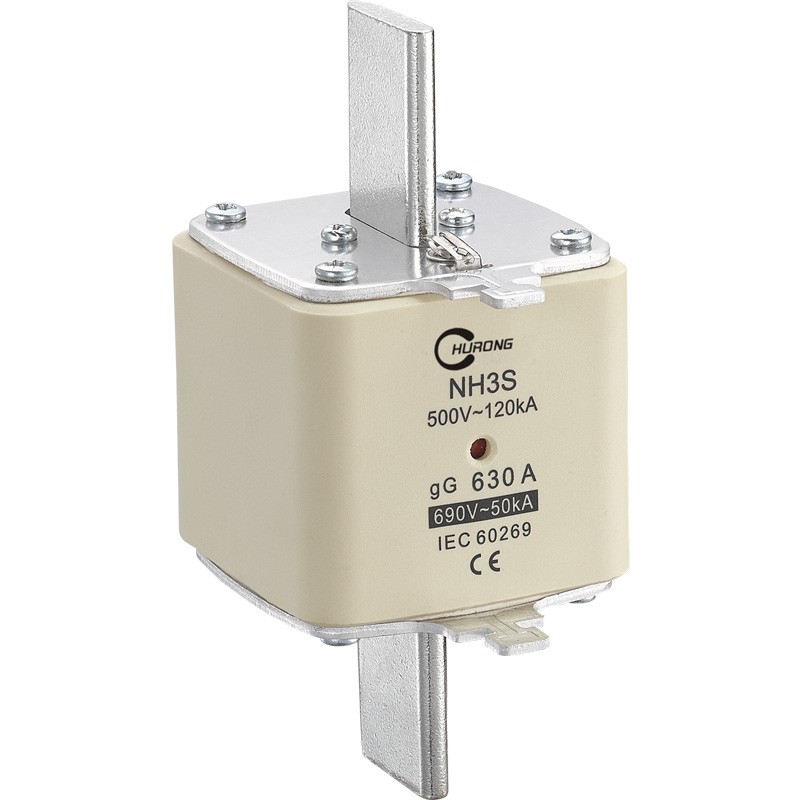

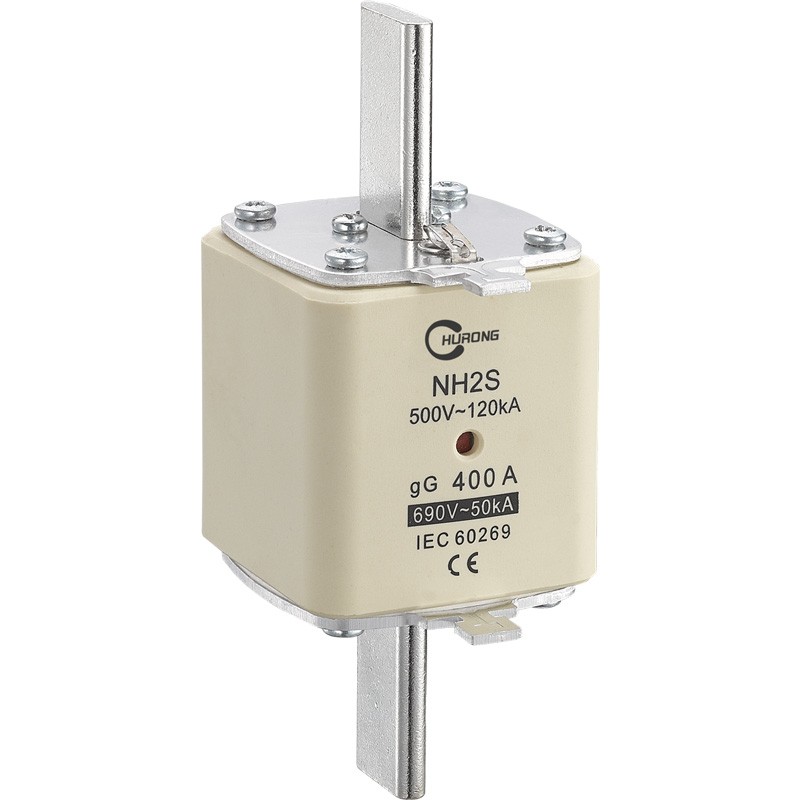

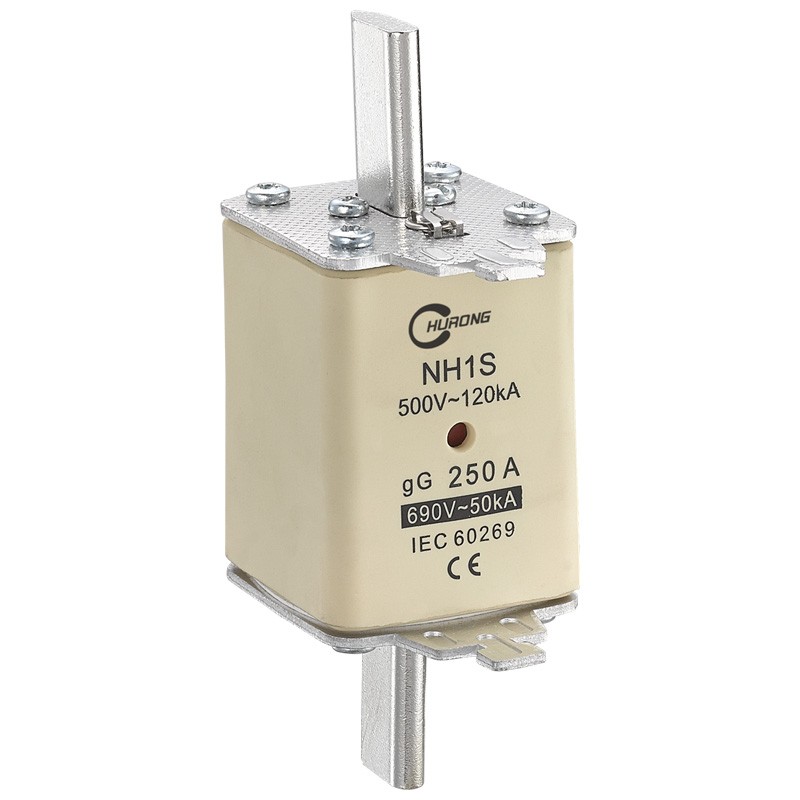

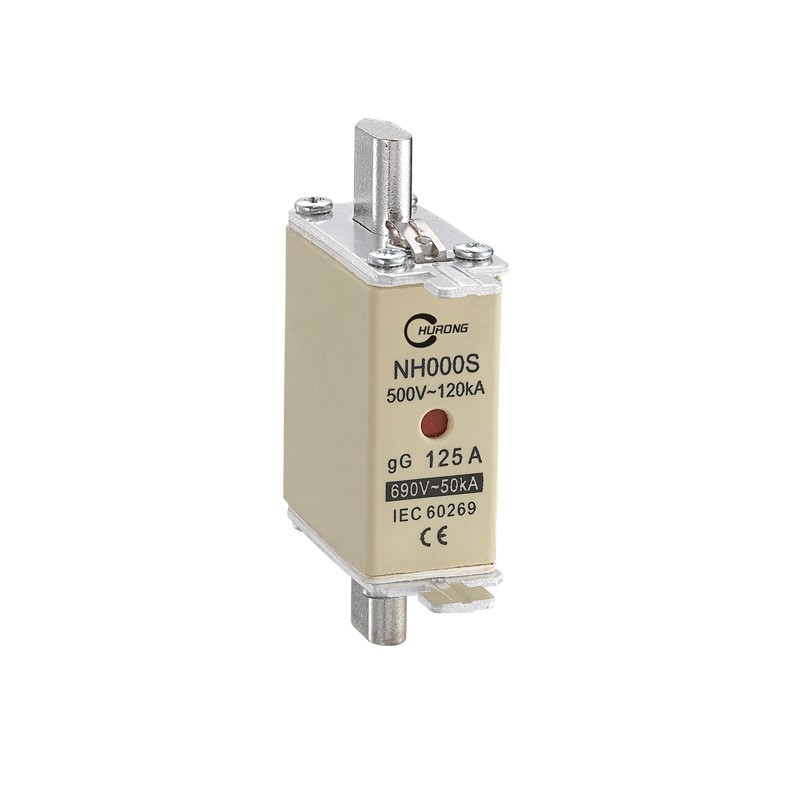

Low Voltage HRC Yellow Ceramic Double Indicator NH Type Blade Fuse Link

NH series fuse is suitable for AC 50Hz,rated voltage to 1140V,rated current to 1250A.lt is mainly used in the electric installation for

protecting ircuit from overload and short circuit(gG/GL);it also may derive for protecting the semiconductor device and others complete

set installment from hort-circuit(aR)as well as the electric motor from short-circuit(aM). he rated breaking capability for this series fuse

is to 120KA.This series fuse conforms to national standard GB13539 and International electrical committee standard IEC60269.
