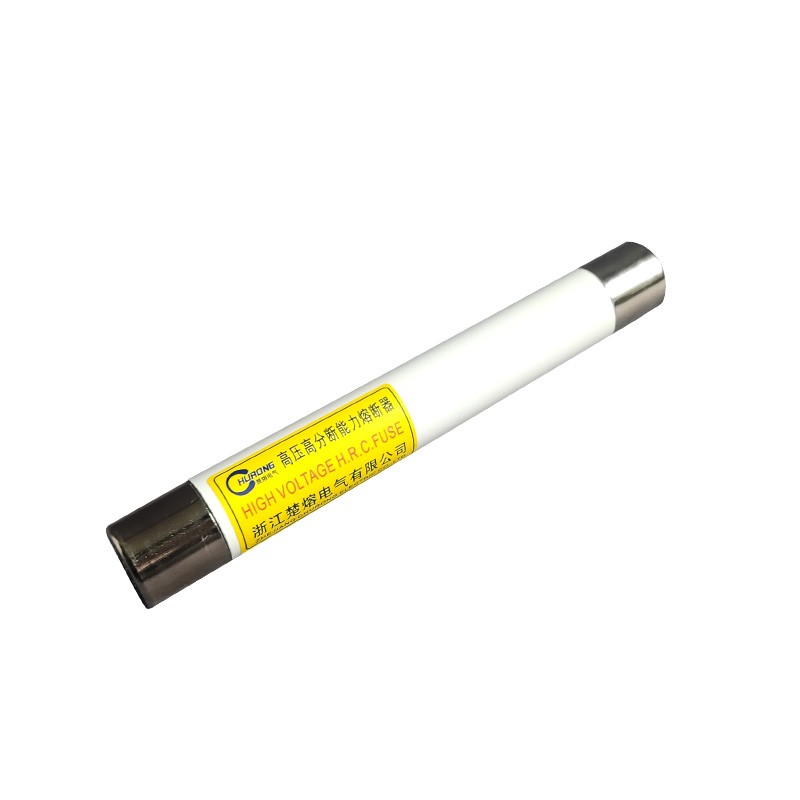

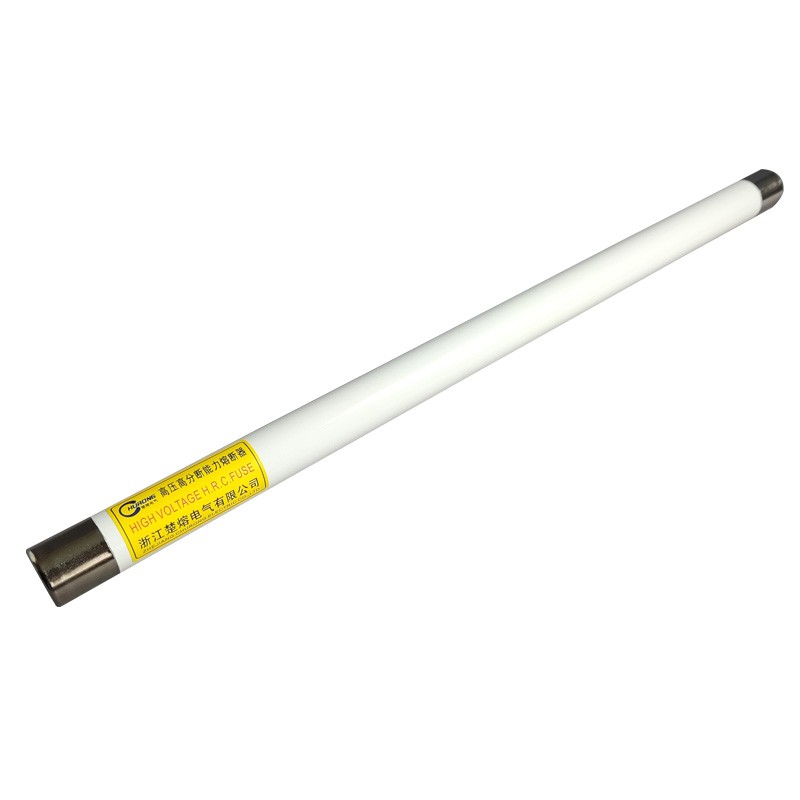

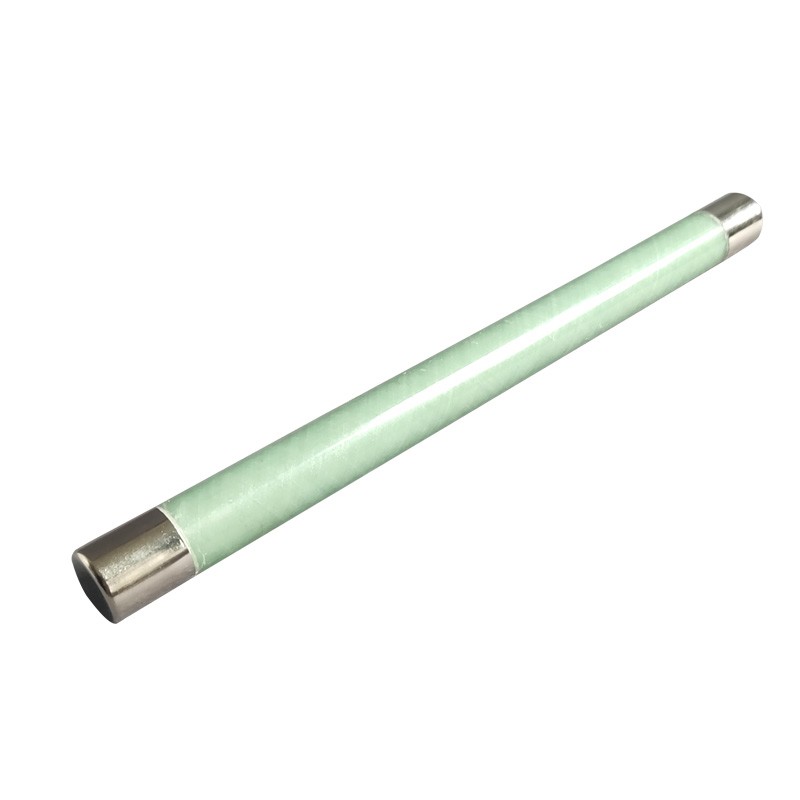

XRNP High Voltage Current-Limiting Fuse for power transformer

XRNP High Voltage Current-Limiting Fuse for power transformer

3.6KV
7.2KV
12KV
CE

INQUIRY

Product Description:

XRNP Fuse can be used in system with rated voltage(3.6KV/7.2KV/10KV/12KV/24KV/35KV/40.5KV for choice),
used together with other protection facilities(such as loading switches).It can protect electric transformers and
other electric facilities against overloading or circuit break.It is widely used for transformers as backup protection.

Model	Rated voltage(KV)	Rated current of fuselink (A)	Rated breaking current(KA)	Dimensions (mm)	Weight
XRNP1	3.6	0.5,1,2,3,15,6.3	50	142	0.19
XRNP1	6/7.2	0.5,1,2,3.15	50	142(195)	0.19(0.22)

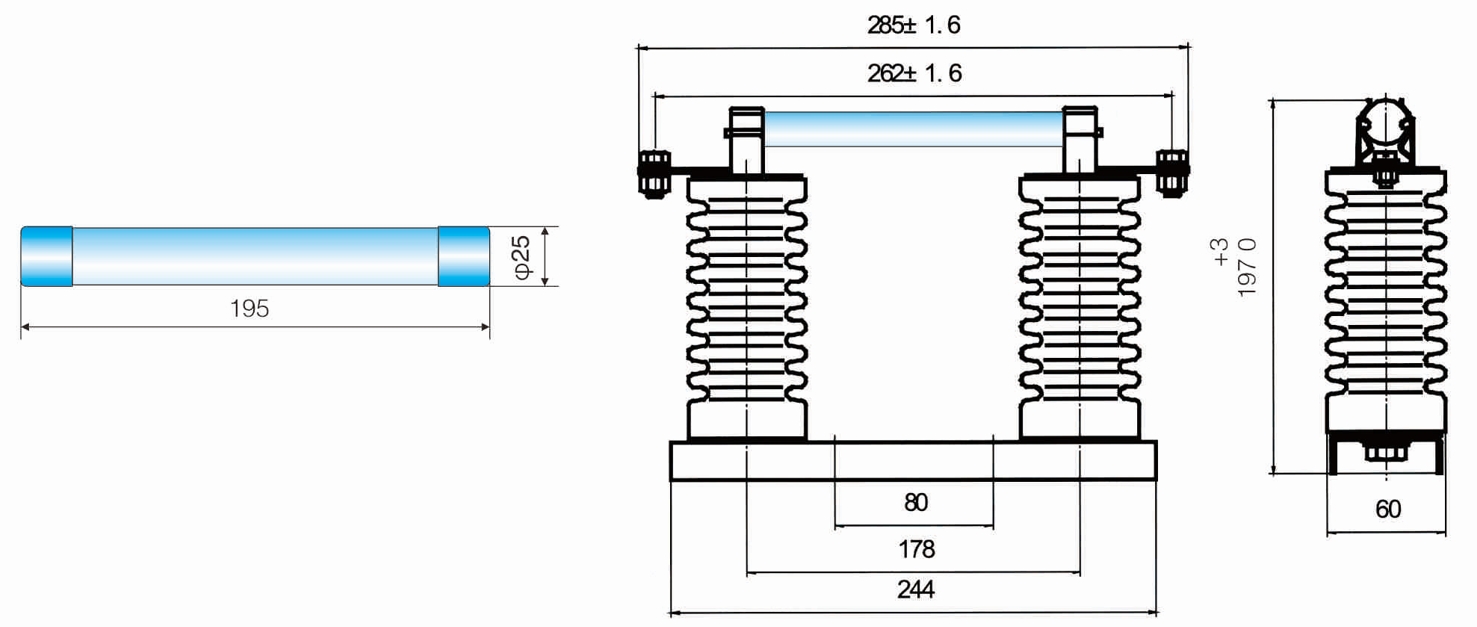

XRNP1	10/12	0.5,1,2,3.15	40	195	0.22
XRNP1	24	0.5,1,2,3.15	40	354	0.43

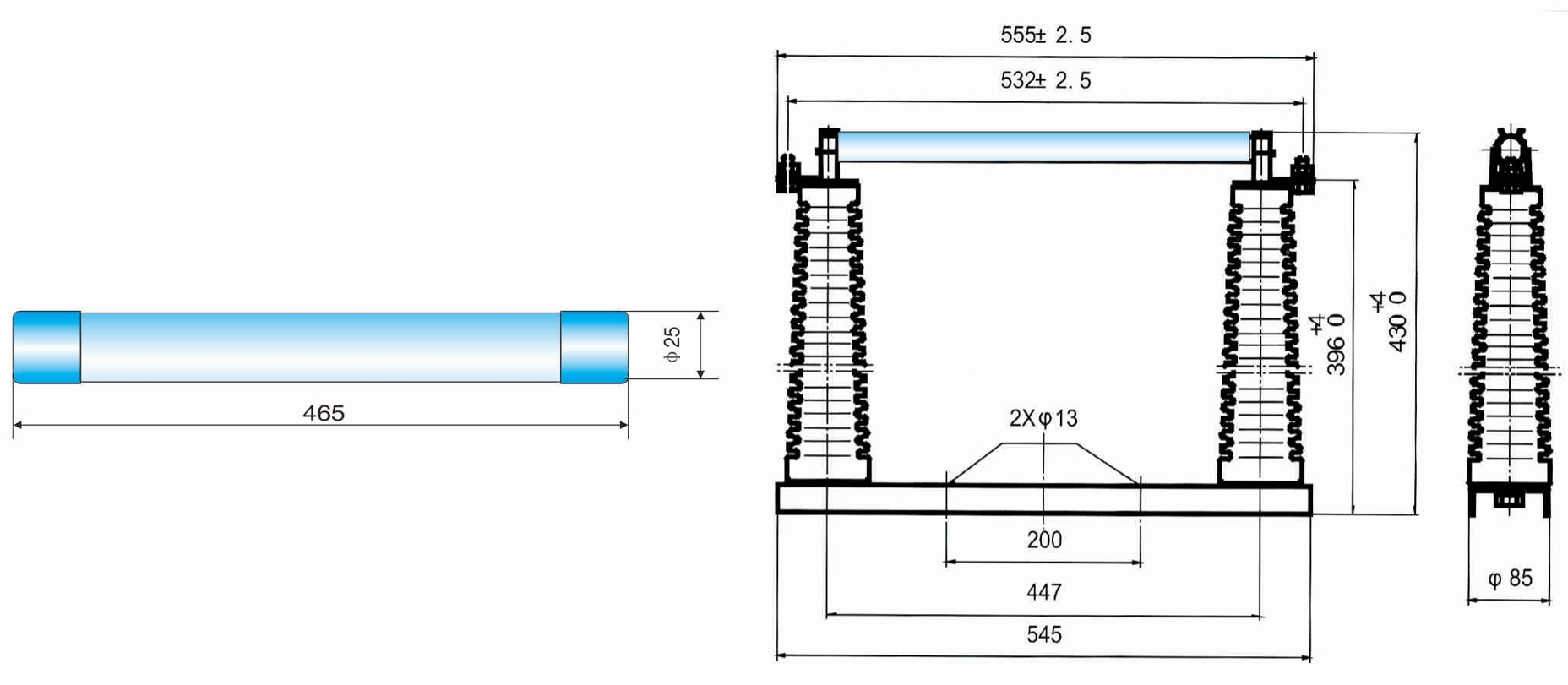

XRNP1	40.5	0.5,1,2,3.15	31.5	465	0.55
XRNP1	12	0.5,1,2,3.15	50	195	1.12
